Service Account

To connect to your Google Cloud Platform (GCP) you will need to create a "Read Only Service Account" for your project and download the JSON key file to import into Hava.

Create a new service account

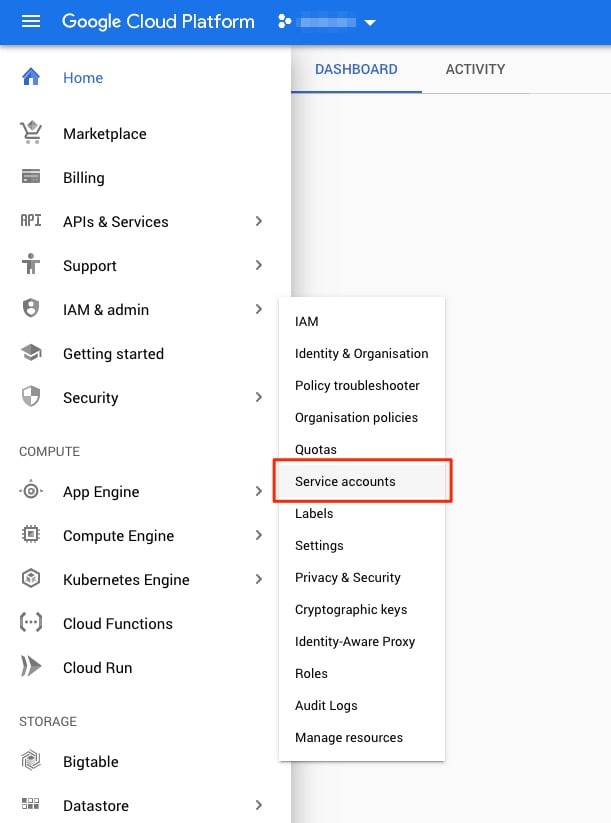

Log in to your Google Cloud Console. In the IAM & Admin menu, select "Service Accounts" :

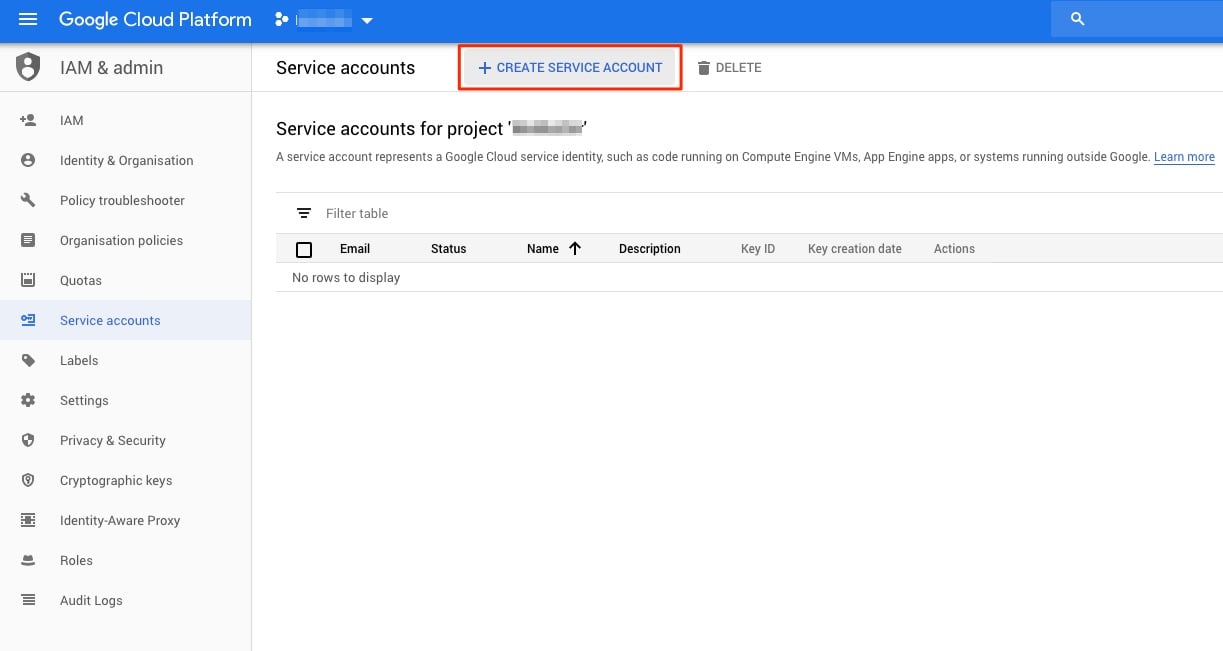

Then select "+Create Service Account" :

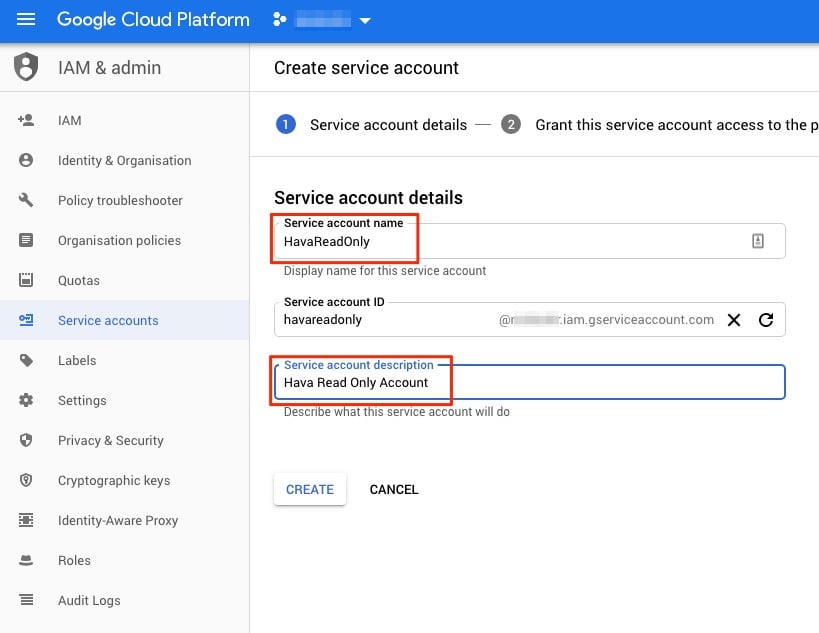

Give the account a memorable service account name and an optional description :

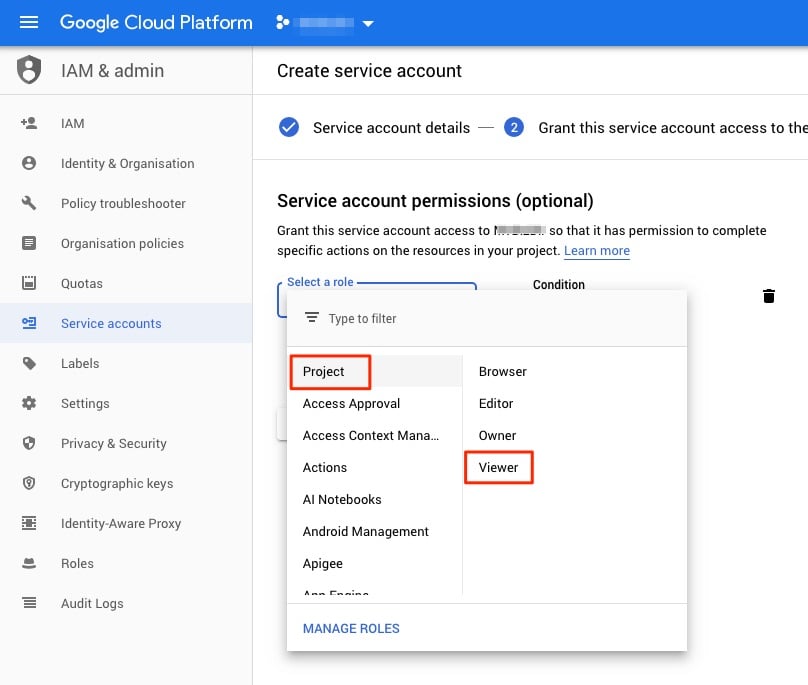

Select Create, then in the Select a Role dialogue, Select Project and Viewer

Create Service Account Key

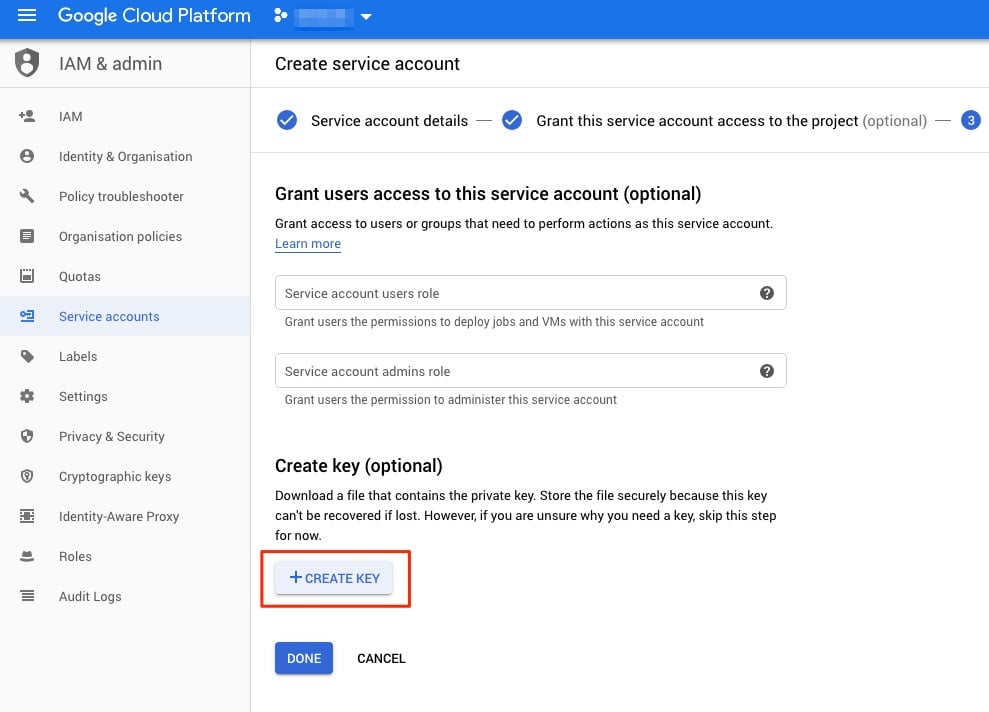

On the next page select +Create Key

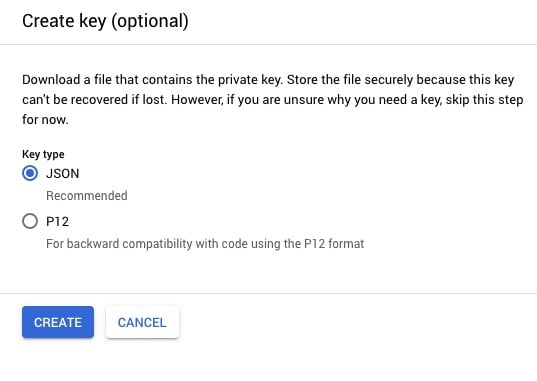

Select the Key Type : JSON and Create

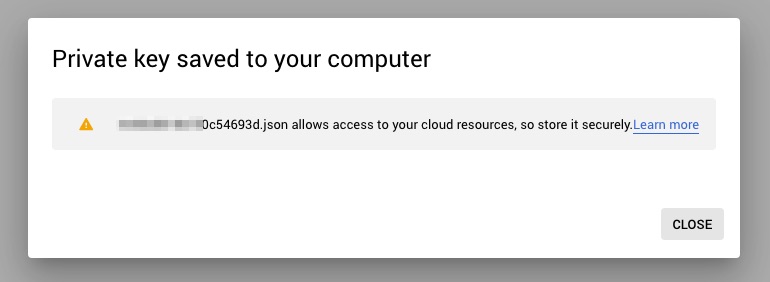

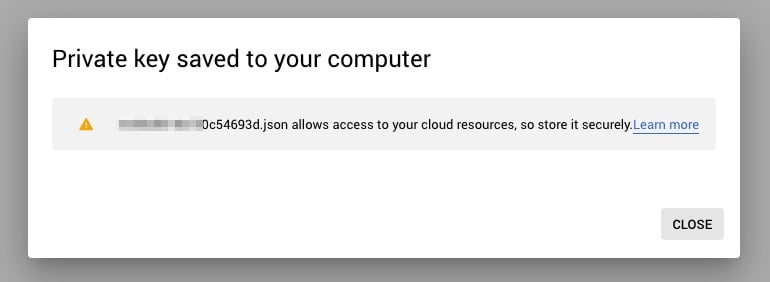

This will download the private key to your computer.

From the Hava Environments dashboard - select Add Environments

Add a new GCP Environment for Auto Diagram Generation

In the Import an Environment dialogue, select the Google Cloud Tab and Select Choose File and select the file containing the Private Key JSON file

Enter the Credential File for GCP and import data to create your diagrams

Hava will then connect to your GCP Project, import the resources and create the interactive diagram.
